Biotin
We developed a quartz crystal biosensor designed to detect concentrations and ligand affinity parameters of free unlabeled proteins in real time. Using a model system with human IgE as the analyte and single-stranded DNA aptamers or an anti-IgE antibody as immobilized ligands, we could demonstrate that aptamers were equivalent to antibodies in terms of specificity and sensitivity. Both receptor types selectively detected 0.5 nmol/L of IgE. In addition, the aptamer receptors tolerated repeated affine layer regeneration after ligand binding and recycling of the biosensor with little loss of sensitivity. Because of the small size and nonprotein nature of the aptamers, they were immobilized in a dense, well-oriented manner, thus extending the linear detection range to 10-fold higher concentrations of IgE. In addition to demonstrating for the first time that an aptamer-based biosensor can specifically and quantitatively detect an analyte in various complex protein mixes, the aptamer-ligand proved to be relatively heat resistant and stable over several weeks. Since aptamers consist of nucleic acids, well-established chemistry can be applied to produce optimized affine layers on biosensors that may be developed to specifically detect proteins in solution for analysis of proteomes.

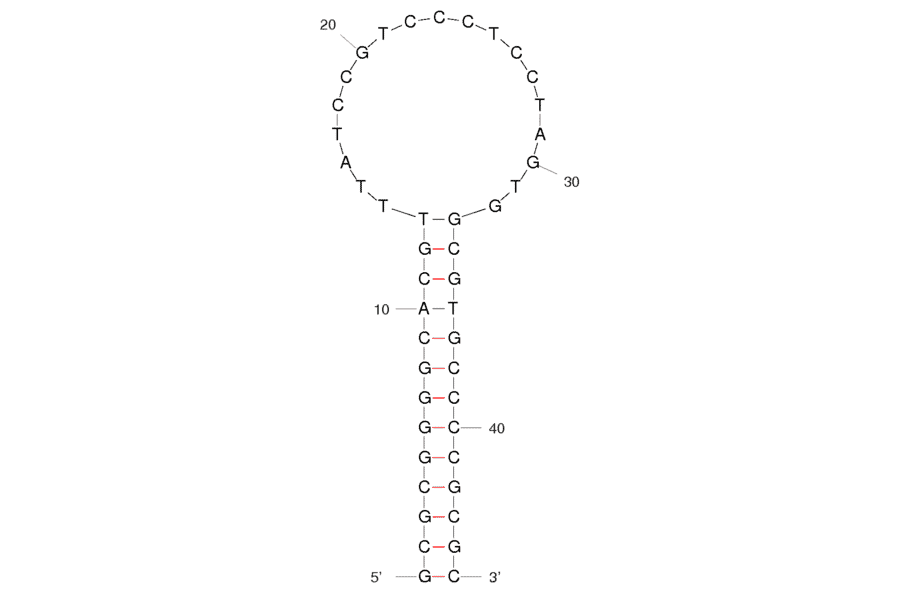

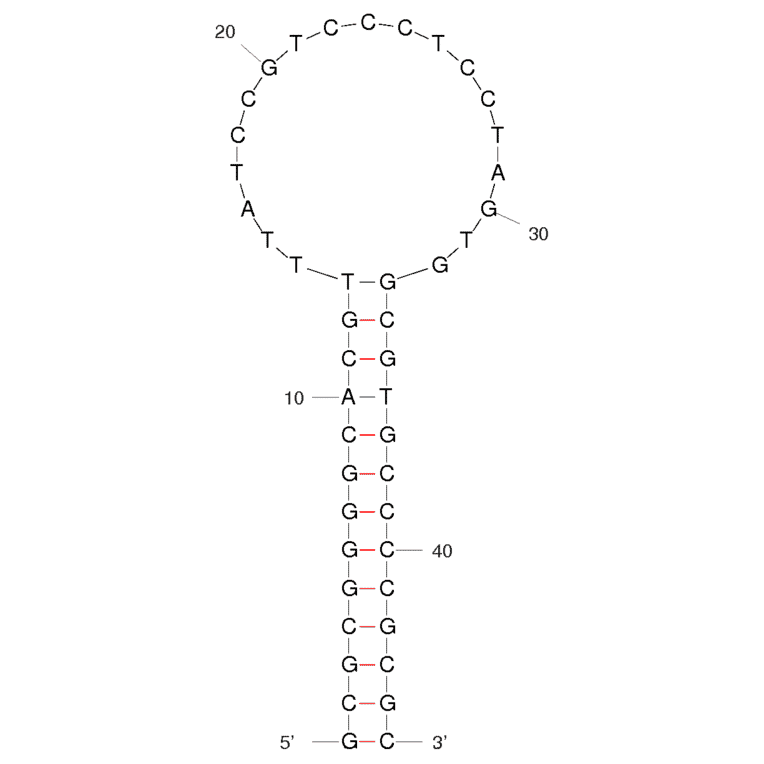

Using the systematic evolution of ligands by exponential enrichment (SELEX) method, we have identified oligonucleotides that bind to human IgE with high affinities and high specificity. These ligands were isolated from three pools of oligonucleotides, each representing 10(15) molecules: two pools contained 2'-NH2 pyrimidine-modified RNA with either 40 or 60 randomized sequence positions, and the third pool contained ssDNA with 40 randomized sequence positions. Based on sequence and structure similarities, these oligonucleotide IgE ligands were grouped into three families: 2'-NH2 RNA group A ligands are represented by the 35-nucleotide truncate IGEL1.2 (Kd = 30 nM); 2'-NH2 RNA group B ligands by the 25-nucleotide truncate IGEL2.2 (Kd = 35 nM); and the ssDNA group ligands by the 37-nucleotide truncate DI 7.4 (Kd = 10nM). Secondary structure analysis suggests G quartets for the 2'-NH2 RNA ligands, whereas the ssDNA ligands appear to form stem-loop structures. Using rat basophilic leukemia cells transfected with the human high-affinity IgE receptor Fc epsilon RI, we demonstrate that ligands IGEL1.2 and D17.4 competitively inhibit the interaction of human IgE with Fc1 epsilon RI. Furthermore, this inhibition is sufficient to dose-dependently block IgE-mediated serotonin release from cells triggered with IgE-specific Ag or anti-IgE Abs. Therefore, these oligonucleotide ligands represent a novel class of IgE inhibitors that may prove useful in the fight against allergic diseases.
